| Toolmaker's Microscope |
 |
|
|
| Observation Tube |
Monocular, Inclined at 30-degrees. Coupled with graduated Eyepiece Protractor. |
| Base |
Large and heavy base provides extra overall rigidity to the instrument. |
| Stage |
152mm X 152mm size assembled on ball bearing guides to provide accurate and smooth stage stroke upto 50mm in each direction. |
| Illumination |
Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illuminator with adjustable inclination for surface illumination of sample with relief structure, is also provided. Three separate knobs for different illumination are provided with variable light control on the front panel. |
| Objectives |
2x Achromatic. |
| Eyepieces |
WF 15 x with Cross reticle. |
| Accessories |
Different optional accessories are available. |
|
 |
| Model RTM-900 |
|
|
| |
| Toolmaker's Microscope |
|
|
|
| Observation Tube
|
Monocular, inclined at 45-degrees fitted with Goniometric head graduated 360 degrees. |
| Base |
Large and heavy base provides extra overall rigidity to the instrument. |
| Stage |
125mm X 125mm with interchangeable intermediate table to receive different optional accessories. Equipped with micrometer head. Rotary measuring stage dia 130mm is mounted on the table with 55mm glass aperture, circular graduated scale is divided into 360-degrees. |
| Illumination |
Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illuminator with adjustable inclination for surface illumination of sample with relief structure, is also provided. Three separate knobs for different illumination are provided with variable light control on the front panel. |
| Objectives |
1x-3x-5x. |
| Eyepiece |
WF 10x (with cross) H10x (with micrometer) & H15x. |
| Accessories |
Different optional accessories are available. |
|
 |

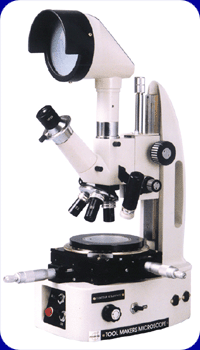

| Model RTM-500 |
|
|
| |
| Large Tool Maker's Microscope |
|
|
|
| Observation Tube |
Monocular, inclined at 30-degrees coupled with graduated eyepiece protractor. |
| Base |
Large and heavy base provides extra overall rigidity to the instrument. |
| Stage |
300mm X 200mm size assembled on ball bearing guides
to provide accurate and smooth stage stroke upto
50mm in each direction. Glass plate size 200 X 100mm.
Measurement through Digital Read-Out System. Resolution:0.001mm. |
| Illumination |
Sub-stage lamp emits transmitted light from a bottom source equipped with collimated green filter halogen light. Oblique illumination through circular flourescent light. |
| Objectives |
2x achromatic. |
| Eyepiece |
WF 15x with cross reticle. |
| Accessories |
Different optional accessories are available. |
|
|
|
| |
