| Inverted Tissue Culture Microscope |
 |
Medical to Research Use |
|
| Observation Head |
45-degrees inclined Binocular head interchangeable with Monocular or Trinocular observation head. |
| Nosepiece |
Quadruple revolving turret nosepiece with positive accurate click stops. |
| Stage |
Oversize plain stage 180 x 150mm with 2 extension plates 150 x 65mm for large bottles and microfilter work. |
| Illumination |
Based on Koehler's system is provided by a post-mounted high intensity 6 volts 20 watts Halogen illuminator. |
| Objectives |
Achromatic 5x, 10x, LWD-20x & LWD-40XSL. |
| Eyepieces |
HWF 10x (paired) with eye guards. |
| Model RTC-99 |
Same as RTC-6, with Trinocular head. |
| Model RTC-8 |
Binocular head with phase attachment.
Objectives: 4x,PH 10x, PH 20X & LWD PH 40X.
Eyepieces: WF10X (paired) & Telescopic eyepiece. |
|
 |

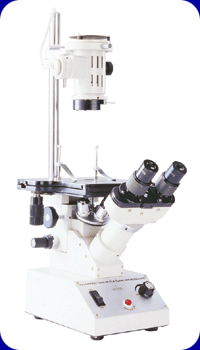

| Model RTC-6 |
|
|
| |
| Inverted Tissue Culture Microscope |
|
Medical to Research Use |
|
RTC-8 Inverted Tissue Culture Microscope with Phase Attachment :
Binocular Microscope with quadruple revolving nosepiece, equipped with Radical Binocular Head assembled from coated prisms and best quality optical components having full prismatic optical path, large specimen stage with extension plates, coarse and graduated slow motion knobs, variable intensity controlled built in base solid-state transformer, fitted with 6V 20 watt Halogen bulb, illumination, based on Koehler's system, imported phase contrast equipment having following optical combination with arrangements, in a storing cabinet.
Objectives:4x, PH 10x,PH 20x & PH 40x.
Eyepieces: WF 10x (Paired) & Telescopic Eyepiece. |
|
 |
| Model RTC-8 |
|
|
| |
| Advanced Inverted Tissue Culture |
|
Medical to Research Use |
|
| RTC-7 Inverted Tissue Culture Microscope in laboratory is widely used in many fields, such as Biological Medicine, Environment Protection etc. |
| LWD Plan Achromatic Objectives & LWD Plan Achromatic Phase Contrast Objectives. |
| LWD Condenser |
| Inverted Structure. |
| Specially suitable for living cells culture and observation. |
| Can be equipped with Photograph attachment, CCTV & Record Attachment |
|
 |
| Model RTC-7 |
|
|
| |
| Optional Accessories for Inverted Tissue
Culture Microscopes |
| RTCA-1 |
Side Coaxial Mechanical Stage. |
| RTCA-2 |
With low positioned co-axial mechanical stage
with three different aperture plates. |
| RTCA-3 |
Biothermy Heating Stage, add extra. |
| RTCA-4 |
Dark Field Condenser Attachment (alongwith
darkfield condenser). |
| RTCA-6 |
Spare Eyepieces WF 15x Paired. |
| RTCA-7 |
Spare Eyepieces WF 20x Paired. |
| RPM-9 |
Photomicrography Equipment. Comprising of
35mm reflex type imported camera, microscope
adapter, bayonet mount, cable release, periplan
eypiece P6x & a standard lens for field
photography. |
| RPM-99 |
Photomicrography Equipment with side view
finder: Suitable for photomicrography to get
100% light transmission with focussable eyepiece
to give exact picture size focussing. All
other specifications as per Model No. RPM-900 |
|
|
|
