Portable Metallurgical
Microscope
|
 |
Laboratory to Research Use
|
|
|
It is compact in size,
light in weight & easy to carry
around. This Microscope permits examination
on the desk & also on the post examination
of an object in original size &
shape in factories, laboratories &
pipelines. The Microscope unit is fitted
with an incident light through epi-illuminator,
slot for dropping filters, supplied
with a variable light control transformer
6V-20W. Two filters in mount, vinyl
cover & following optical combination
in box.
Objectives : M5x, M10x, M20x & M40x.
Eyepieces : WF 10x |
|
 |
Model RMM-5
|
|
|
|
Laboratory Metallurgical
Microscope
|
|
Research to Industrial Use
|
|
|
Body
|
Monocular Inclinable Body. |
Nosepiece
|
Triple revolving nosepiece with accurate
centering and positive click stops. |
Stage
|
Detachable Mechanical Stage for X-Y
movement of specimens. |
Illumination
|
Brightfield vertical illuminator 6V-20W
Halogen with aperture diaphragm, filter
slots and bulb centring mechanism. Supplied
with a variable controlled transformer. |
Objectives
|
Achromatic : M10X & M40X.
|
Eyepieces
|
H10X - H15X |
|
 |
Model RMM-6
|
|
|
| |
|
Binocular Metallurgical
Microscope
|
|
Research to Industrial Use
|
|
|
Body
|
Binocular Head inclined at 45-degrees.
|
Nosepiece
|
Quadruple revolving nosepiece with accurate
centering and positive click stops. |
Stage
|
Large Low co-axial Mechanical Stage
for X-Y movement of specimens upto thickness
of 65 mm. |
Illumination
|
Brightfield vertical illuminator 6V-20W
Halogen with aperture diaphragm, filter
slots and bulb centring mechanism. |
Objectives
|
Achromatic M4X - M10X & M40X.
|
Eyepieces
|
H6X - WF10X (paired) |
Model RMM-7
|
Same as Model RMM-7B, but with Monocular
observation head. |
|
 |
Model RMM-7B
|
|
|
|
|
|
Trinocular Metallurgical Microscope
|
|
Laboratory to Research Use
|
|
|
|
Body
|
Trinocular Head inclined at 45-degrees. |
Nosepiece
|
Quadruple revolving nosepiece with accurate centering
and positive click stops. |
Stage
|
Large Low co-axial Mechanical Stage for X-Y movement
of specimens upto thickness of 65 mm. |
Illumination
|
Brightfield vertical illuminator 6V-20W Halogen
with aperture diaphragm, filter slots and bulb centring
mechanism. |
Objectives
|
Achromatic M4X - M10X & M40X. |
Eyepieces
|
H6X - WF10X (paired) and P7X for microphotography.
|
Model RMM-7
|
Same as Model RMM-7T, but with Monocular observation
head. |
Model RMM-7B
|
Same as Model RMM-7T, but with Binocular observation
head. |
|
 |

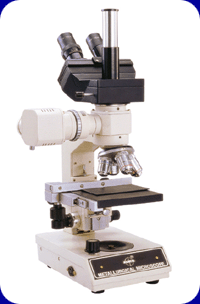

Model RMM-7T
|
|
|
|
|
Trinocular Metallurgical Microscope
|
|
Laboratory to Research Use
|
|
|
Body
|
Trinocular Head inclined at 45-degrees. |
Focussing
|
Both side co-axial focussing knobs. |
Nosepiece
|
Quadruple revolving nosepiece with accurate centering
& positive click stops. |
Stage
|
Large Co-axial Mechanical Stage for X-Y movement
of specimens. |
Illumination
|
Brightfield vertical illuminator 6V-20W Halogen
with field & aperture diaphragm, filter slots
and bulb centring mechanism. |
Objectives
|
Achromatic DIN M4X-M10X & M40X. |
Eyepieces
|
H6X-WF10X (paired) and P7 for microphotography. |
|
 |
Model RMM-8T
|
|
|
|
|
Inclined Metallurgical Microscope
|
|
Research to Industrial Use
|
|
|
Observation Head
|
Binocular Observation Head inclined at 45-degrees. |
Nosepiece
|
Quadruple revolving Nosepiece. |
Magnification
|
Provide magnification from 100x to 600x. |
Illumination
|
Brightfield vertical illuminator 6V-20W Halogen
with aperture diaphragm, filter slots and bulb centring
mechanism. |
Objectives
|
M4X, M10X, M20X and M40X specially corrected for
flatfield achromat. |
Eyepieces
|
WF 10X and H5X. |
Model RMM-55
|
Same specification as per RMM-55B but with monocular
head. |
Model RMM-55T
|
Same specification as per RMM-55B but with Trinocular
head. |
Model IM-1
|
Heavy base with coaxial mechanical stage for x-y
movement, suitable for above models. |
|
 |
Model RMM-55B
|
|
|
|
|
Inverted Metallurgical Microscope
|
|
Laboratory to Research Use
|
|
|
Observation Head
|
Binocular Head is equipped with 45-deg. inclined
observation tubes with adjustable inter-pupillary
distance. |
Nosepiece
|
Quadruple revolving Nosepiece with accurate centring
and positive click stops. |
Stage
|
Large
sturdy coaxial arrangement for x-y movement. |
Illumination
|
Brightfield vertical illuminator 6V-20W Halogen
with aperture diaphragm, filter slots and bulb centring
mechanism. |
Objectives
|
Corrected flat field achromats M4X-M10X & M40X
SL. |
Eyepieces
|
Wide field 10X and H15X (paired). |
Model RMM-77B
|
All specification same as per RMM-77, but fitted
with Camera Port on the side of Microscope base
for Microphotography Equipment and CCTV. |
|
 |
Model RMM-77
|
|
|
|
|
Inverted Metallurgical Microscope
|
|
Advanced Metallurgical Use
|
|
| |
Observation Head
|
Siedentopf Binocular observation head with adjustable
eye piece separation. |
Stand
|
Inverted microscope stand, complete with built-in
transformer, calibrated light intensity control,
socket and fuse holder. |
Stage
|
Graduated mechanical stage, 150x160mm in size, offers
30x30mm cross section motion reading to 0.1mm by
vernier. Provided with low coaxial controls. |
Illumination
|
Brightfield vertical illuminator 6V-20W Halogen
with aperture diaphragm, filter slots and bulb centring
mechanism. |
Polarising
|
Built-in rotatable analyser and lamp polariser filters
are provided for dark field illumination.
|
Objectives
|
M5x (N.A.0.12), M10x(N.A.0.25), M20x(N.A.0.40) and
M40x(N.A.0.65). |
Eyepieces
|
Wide field HKW 10x (offered in paired set). |
Magnification
|
50X-400X for visual observation, 20X-165X for 35mm
photography and 50X-400X for polaroid photography.
|
Photo Mechanism
|
Built-in optical path selector (flip-in type) and
built-in deviating mirror to direct light to camera.
4X photo-tube for 35mm camera is included
|
Accessories
|
Stage clip, 3 stage insert plates (opening 15, 25
and graduated 25 phi-mm), green and blue filters,
bulb cord, line cord & spare bulbs. |
|
 |
Model RMM-1
|
|
|
| |
|
Inverted Metallurgical Microscope
|
|
Advanced Metallurgical Use
|
|
| |
Observation Head
|
Binocular observation head. |
Nosepiece
|
Quadruple revolving nosepiece with accurate centering
and positive click stops. |
Stage
|
Extra large 150 x 160mm, offers 30x30mm cross motion
provided with low drive co-axial control. |
Illumination
|
Brightfield vertical illuminator 6V-20W Halogen
with aperture diaphragm, filter slots and bulb centring
mechanism. |
Objectives
|
Specially corrected flat field achromats M4X - M10X
- M40X & M60X (dry). |
Eyepieces
|
Wide field - WF10X, WF 15X and WF 20X. |
Model RMM-99A
|
All specifications same as per Model RMM-99 but
with Trinocular Head, suitable for Photomicrography.
|
|
 |
Model RMM-99
|
|
|
| |
|
Large Stage IC Inspection Microscope
|
|
Elementary to Teaching Use
|
|
|
|
Reflected and transmitted light illuminator for
Inspection of large wafer and photomarks in the
IC industry. The microscopes is equipped with a
large size mechanical stage, smooth movement of
ball bearing guides having low coaxial controls
for x-y movement. |
Objectives
|
M5x-M10x, M20x and M50x. |
Eye pieces
|
WF10x and WF 15x. |
Magnification
|
50x to 750x. |
|
 |
Model RMM-101
|
|
|
|
|
Inverted Metallurgical Microscope
|
|
|
|
|
Plan Objectives :
|
4x, 10x, 40x & 100x. |
Eyepieces :
|
WF 10x (Paired). |
Low-Coaxial Mechanical Stage
Co-axial focussing knobs.
Optional Accessories are available.
|
|
 |
Model RMM-88B
|
|
|
|
ACCESSORIES FOR METALLURGICAL MICROSCOPES
|
MM1
|
Micrometer
Eyepiece: Fitted with 10mm scale in 100 parts. |
MM2
|
Grain
Size Eyepiece WF 10X: with 8 grain size rapid
comparison of the microstructures. |
MM3
|
FILLAR
Micrometer Eyepiece 10X: Direct reading to 0.001mm
is accessible. |
MM4
|
Object
Micrometer Slide: 10mm in 100 divisions, least
count 0.1mm. |
MM5
|
Object
Micrometer Slide: 1mm in 100 divisions, least
count 0.01mm. |
MM6
|
Filters:
Green, Yellow, Blue, Day light blue available
in metal mount. |
MM7
|
Eyepieces:
H5X-H10X-H15X. |
MM8
|
Eyepieces:
WF10X-WF15X. |
MM9
|
Eyepiece:
WF20X |
MM10
|
Achromatic
Objective: M4X |
MM11
|
Achromatic
Objective: M20X |
MM12
|
Achromatic
Objective: M40X |
MM13
|
Achromatic
Objective: M60X (Dry). |
MM14
|
Achromatic
Objective: M100X (Oil). |
MM15
|
Projection
Screen: 150mm. |
MM16
|
Halogen
Bulb: 6V-20Watts. |
MM17
|
Halogen
Bulb: 12V-50Watts. |
MM18
|
Hand
Press: Used to align the specimen surface parallel
with the stage surface. |
MM19
|
Polarising
Attachment for Metallurgical Microscopes. |
MM20
|
Dark
Field Attachment for Metallurgical Microscopes |
|
|
|
|
